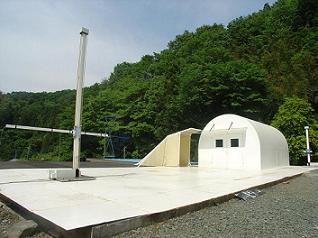

| Outside View of OATS (Open
Site)
|
|

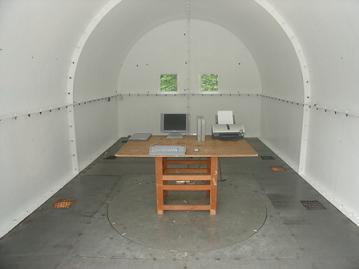

Inside of
Housing |
 |
 |
|
Summary of Instruments for
EMI |
|
|
OATS
(Open
Site)
|
Ground
Plane
Housing （W×D×H）
Turn
Table
Height of Antenna
Distance |
12m×18m
4m×6m×3.2m
（made of FRP）
Diameter: 2m Maximum Weight:
1000kg
1～4m
3m, 10m |
| Shielded Room |
Shielded Room
(W×D×H） |
3.6m×5.4m×2.4m
（Size of
front door: 0.9m×2m） |
| Power Supply |
AC power supply
(single phase)
DC power supply
AC power
supply (3 phase) |
Voltage: AC100～240V,
Frequency: 50/60Hz
Electric Current:
ＭＡＸ30Ａ
Voltage: DC0～60V, Electric Current:
0～60A
Voltage: ＡＣ200Ｖ, Electric Current:
ＭＡＸ30Ａ | |

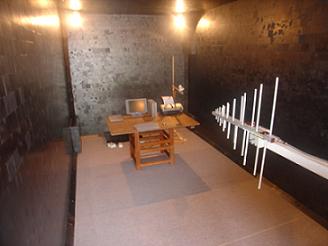

| An echoic
chamber |

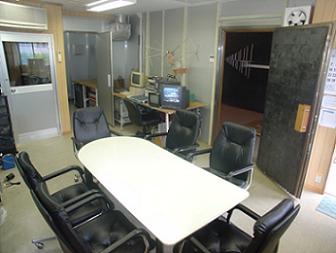

Testing
Room |
 |
 |
| Summary of Instruments
for Immunity |
|
An
echoic chamber
and
Sheilded
Room |
・An Echoic Chamber （W×D×H）
・Shielded
Room （W×D×H）
|
3.0m×7.0m×3.0m
（Size of fornt door:
2.0m×2.3m）
1.9m×2.5m×2.5m
（Size of front door:
0.9m×2m） |
| Power Supply |
・AC power supply (single
phase)
・DC power supply
・AC power supply
(3 phase) |
Voltage: ＡＣ100～240V, Frequency:
50/60Hz
Electric Current: ＭＡＸ30Ａ
Voltage:
DC0～60V, Electric Current: 0～60A
Voltage:
ＡＣ200Ｖ、Electric Current:
ＭＡＸ30Ａ | |
|
