 EMI facility

　We perform tests on radiated noise emitted from products and conducted noise from power lines,etc.

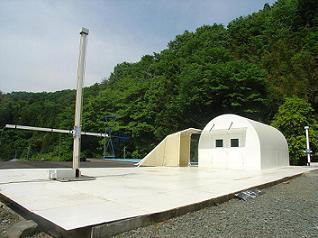

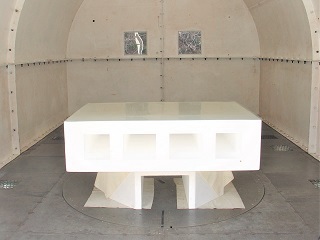

Open site exterior photo Photo inside dome

 EMI facility
Open site  Ground plane dimensions  12m×18m
 Dome dimensions 4m×6m×3.2m　(FRP)
Turntable Diameter ：2m　
Load capacity ：1000kg
Antenna height  1～4ｍ
Measured distance  3m、10m
Shield room Shield room dimensions
(W×D×H)		 3.6m×5.4m×2.4m
(door size 0.9m×2m)
Power suppiy  Single layer AC power supply Voltage ：AC100～240V
Frequency ： 50Hz/60Hz
Current ： MAX30A
 DC popower supply Voltage ： DC 0～60V
Current ： 0～60A
3 layer AC power supply   Voltage ： AC200V
Current ： MAX30A


　Immunity facility

　We perform durability tests on products in various electromagnetic enviroments.　　　　　　　　　　　

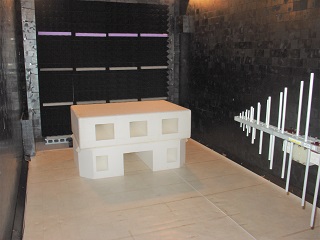

 Immunity test room (anechoic chamber)

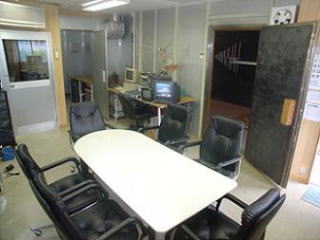

 Measurement room photo


　Immunity facility　
Immunity
test chamber
 Immunity test chamber dimensions
(W×D×H))		  3.0m×7.0m×3.0m
(door size 2.0m×2.3m)
Opposing eqipment room dimensions
(W×D×H)		  1.9m×2.5m×2.5m
(door size　0.9m×2.0m)
Power supply Single layer AC power supply Voltage ： AC100～240V
Frequency ： 50 / 60Hz
Current ： MAX30A
DC power supply Voltage ： DC 0～60V
Current ： 0～60A
3 layer AC power supply Voltage ： AC200V
Current ： MAX30A
